40 Scott and Burgan Fire Behavior Fuel Models


Data Products:Reference  ∕  Disturbance  ∕  Vegetation  ∕  Fuel  ∕  Fire Regime  ∕  Topographic  ∕  Who are We
     Notifications Alerts

Latest NewsLatest News

Get Data

This page includes a general description of the product, please consult the schedule and version pages for information specific to each release.

40 Scott and Burgan Fire Behavior Fuel Model (FBFM40) represents distinct distributions of fuel loading found among surface fuel components (live and dead), size classes, and fuel types. This set contains more fuel models in every fuel type (grass, shrub, timber, slash) than Anderson's set of 13. The number of fuel models representing relatively high dead fuel moisture content increased, and fuel models with an herbaceous component are now dynamic, meaning that loads shift between live and dead (to simulate curing of the herbaceous component) rather than remaining constant.

LANDFIRE's (LF) FBFM40 was evaluated through a series of workshops held across the nation with fire and fuels specialists. Workshop participants reviewed and adjusted surface fuel model rulesets using unique combinations of Existing Vegetation Type (EVT), Existing Vegetation Cover (EVC), Existing Vegetation Height (EVH), and in some cases Biophysical Setting (BPS).

Annual Disturbance products were first incorporated into fuel production during LF 2008. The introduction of this information allowed for informed changes to the assigned fuel models from disturbance type, severity, and time since the disturbance.

Beginning with LF 2016 Remap, and beyond, an improvement for fuels products in disturbed areas was implemented. Fuels are now adjusted to expected current year vegetation conditions for disturbances that have occurred between certain select years that vary by the version. Making the fuels products “capable to X year fuels” or “capable fuels”. Beginning with LF 2022, capability is implied in the naming convention.

LF 2016 Remap and beyond includes a 90-kilometer buffer along the 1,500 miles of the eastern and southern borders AK shares with Canada. Then with the LF 2020 update, and future updates, for the Conterminous United States (CONUS) a 90-kilometer buffer into Mexico is also included.

Modeling Dynamic Fuels with an Index System (MoD-FIS) - refined FBFM40 classification based upon current estimates of FBFM40 from Landsat imagery for the current growing season. Where available, LF recommends using MoD-FIS data for fire behavior modeling in prescribed burn plans and during wildfires as this data reflects more current fuel conditions. For risk assessments, users should look to the Fire Behavior Fuel Model 40 annual releases which represent fuel condition averages for a fire season.

Product availability

Attribute Data DictionaryPDF

Resources: A quick visual description of the expected fire behavior characteristics for surface fuel models.

Comma separated value (CSV) files can be found in the LF Library.

Download Data

Metadata:

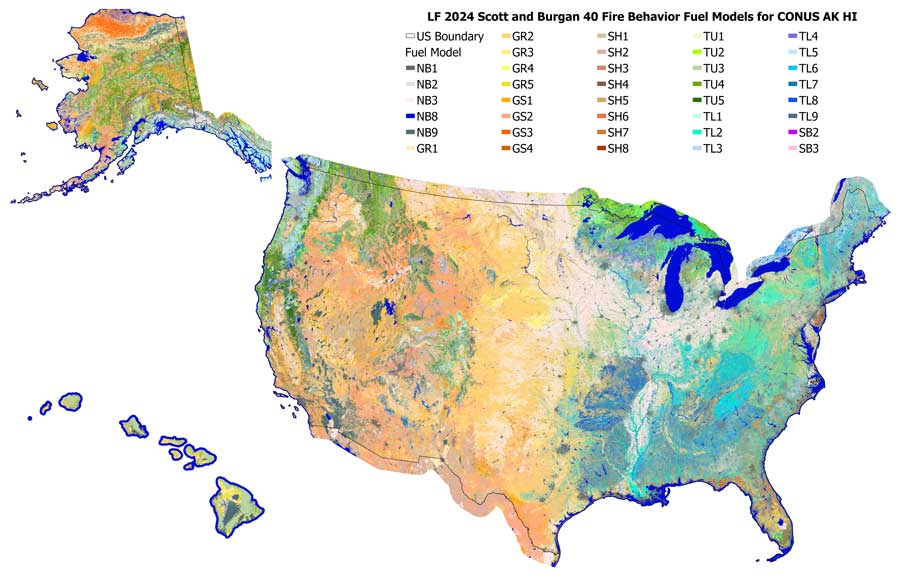

picture of an FBFM40 example
Northwest region - LF 2016 Remap FBFM40
