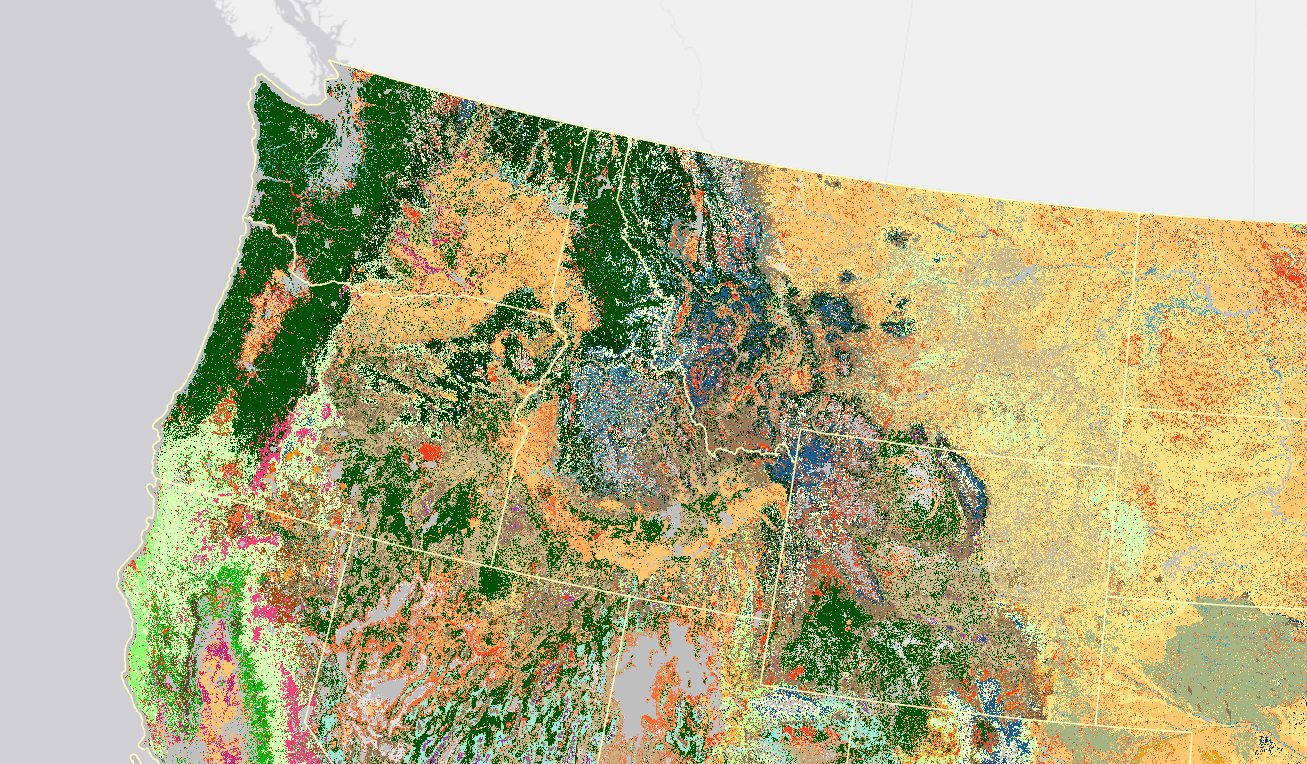

Image showing colors for FCCS in the upper NW corner of the U.S.This page includes a general description of the product, please consult the schedule and version pages for information specific to each release.

Fuel Characteristic Classification System (FCCS) defines a fuelbed as the inherent physical characteristics of fuel that contribute to fire behavior and effects (Riccardi and others 2007). A fuelbed can represent any scale or precision of interest. In FCCS, fuelbeds represent the structure and composition of wildland fuels and can accommodate a wide range of fuel characteristics in six horizontal fuel layers called strata (Ottmar and others 2007).

FCCS summarizes and classifies wildland fuel characteristics and can also be used to predict surface fire behavior, crown fire potential and available fuel for estimating consumption, fire effects, and emissions.

  • FCCS reference fuelbeds represent fuels throughout much of North America and were compiled from published literature, fuels photo series, other fuels data sets and expert opinion.
  • The LANDFIRE (LF) fuels team collaborated with the Fire and Environmental Research Applications (FERA) team of the U.S. Forest Service Pacific Northwest Research Station on the FCCS product.
  • FCCS fuel beds have been mapped in LF and are preloaded in the Fuel and Fire Tools (FFT) application.

The fundamental component of the FCCS, the fuelbed, is the mapping unit in the FCCS. The LF FCCS is delivered with attributes summarized from the FCCS calculator for each fuelbed, including name and fuel loading information in tons per acre. This information can be used for fire behavior and fire effects estimations.

Consume Input Tables are formatted for use in the Consume 4.2 calculator embedded in the FFT software. Fuel loading units are in tons per acre and can be used in the command line version of Consume. This table can be used in conjunction with the LF FCCS layers in a mapping program, and be cross walked via the FCCSID in column B.

First Order Fire Effects Model (FOFEM) Input Tables provide fuel loading values summarized for use in the general FOFEM calculator. The file is not formatted for use in the FOFEM batch feature in the program. Fuel loading units are tons per acre and with additional fuel moisture and site descriptors this file can be adapted to work in the FOFEM batch function. This table can be used in conjunction with the LF FCCS layers in a mapping program, and be cross walked via the FCCSID in column B.

LF 2016 Remap and beyond includes a 90-kilometer buffer along the 1,500 miles of the eastern and southern borders AK shares with Canada. Then with the LF 2020 update, and future updates, for the Conterminous United States (CONUS) a 90-kilometer buffer into Mexico is also included.

FCCS Disturbance Transition Database

Notice

When using Microsoft Access to view a database downloaded from the internet, users may see a Security Risk Error that prevents the database from opening. As of September 2024, all Microsoft products block macros by default to prevent potential malicious activity. To unblock macros on trusted files, do the following:

  • Open the folder in which the file is saved
  • Right-click the file and select Properties
  • Under the General tab, select the checkbox next to Unblock
  • Click OK

To read more about Microsoft and blocked macros, click here.
